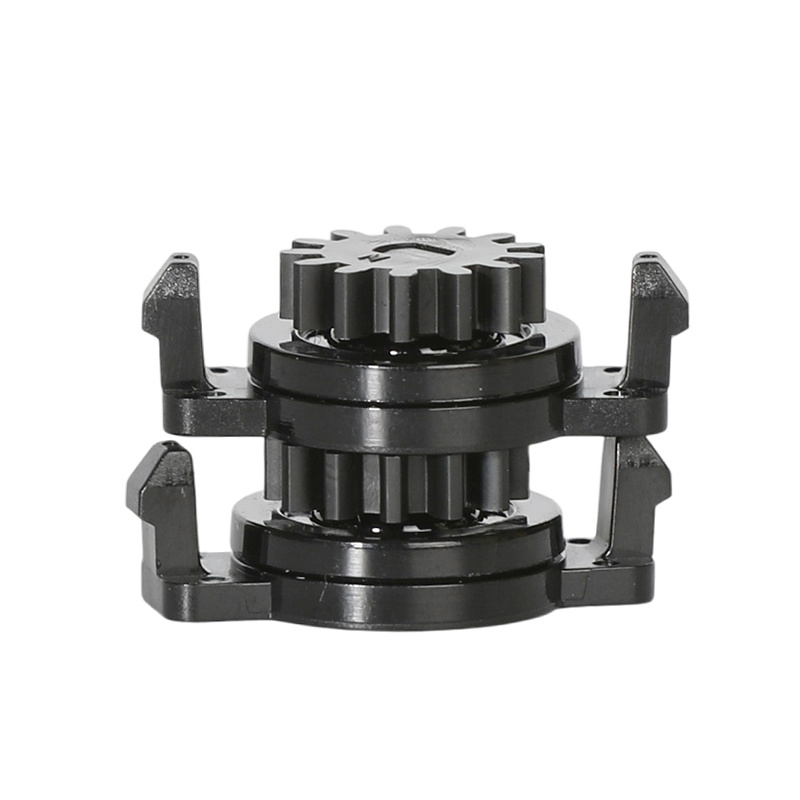

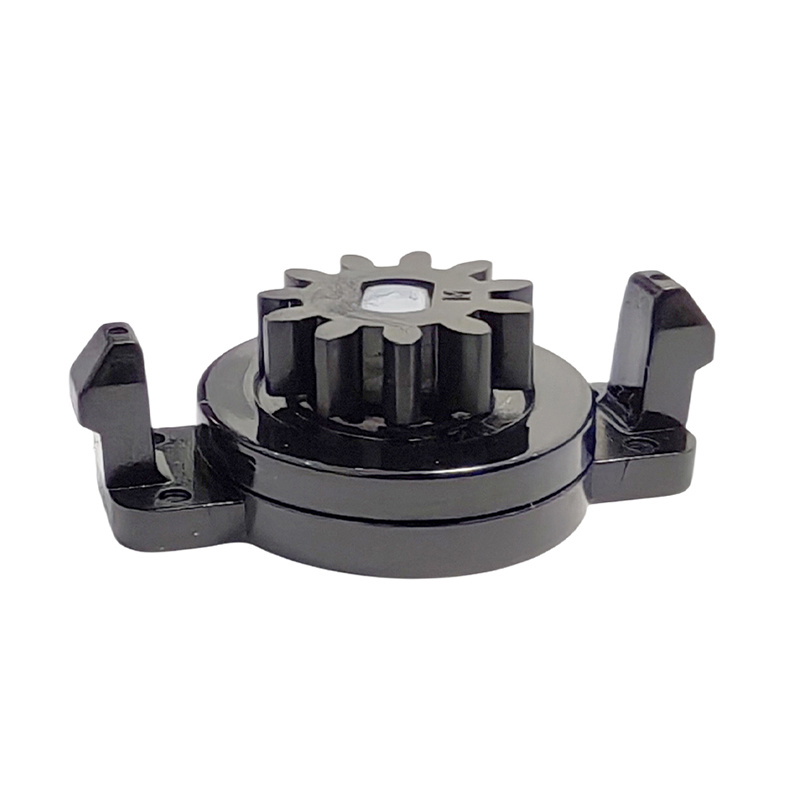

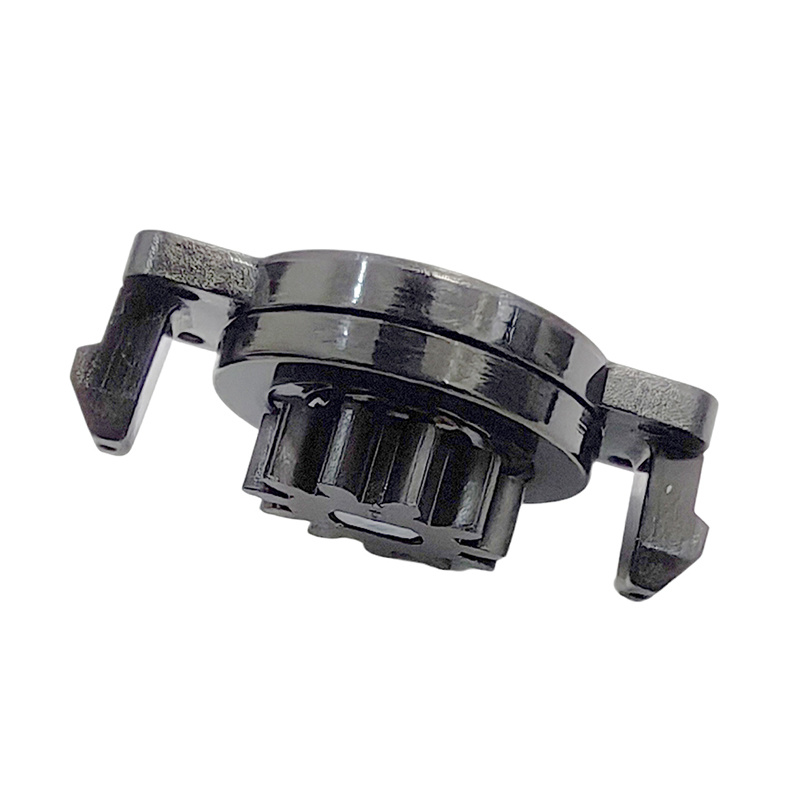

DAA15B1 Series Gear Damper
Product model:
DAA15B1
Product features
Product details
Currently widely used in car products, such as car storage box, car audio, car glasses box, cd player, car navigation, slide-type smart lock, etc.
*Use temperature : -20-80°C
*Product shell material: POM
*Rotary shaft material : POM
*Gear Material : POM
*Oil used: Silicone oil
*Special torque customization can be provided by changing the viscosity of the buffer viscous oil
*Choose a suitable gear according to your needs, such as DAA15B1- B300G1
Basic parameters:
| Model | Torque | Orientation |
| DAA15B1-B250-(G1) | 0.0025+0.0.0004NM (25±4gfcm) | Bidirectional |
| DAA15B1-B500-(G1) | 0.005+0.0.00075NM (50±7.5gfcm) | Bidirectional |
| DAA15B1-B101-(G1) | 0.01+0.0.0015NM (100±15gfcm) | Bidirectional |
| DAA15B1-B151-(G1) | 0.015+0.0.0023NM (150±23gfcm) | Bidirectional |
| DAA15B1-B201-(G1) | 0.02+0.0.003NM (200±30gfcm) | Bidirectional |
| DAA15B1-B251-(G1) | 0.025+0.0.0038NM (250±38gfcm) | Bidirectional |

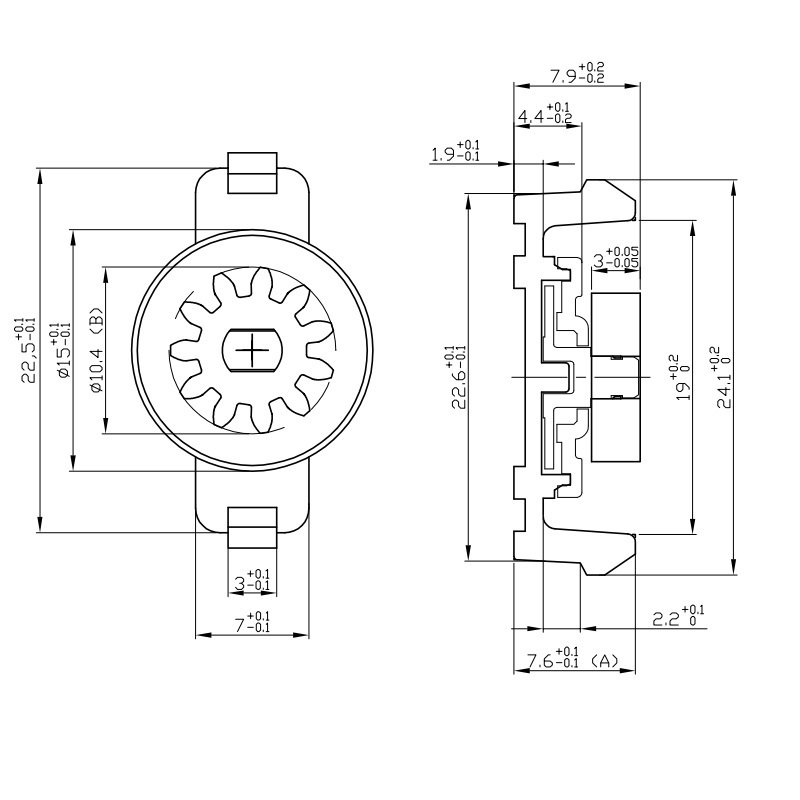

Dimensional Drawings:
